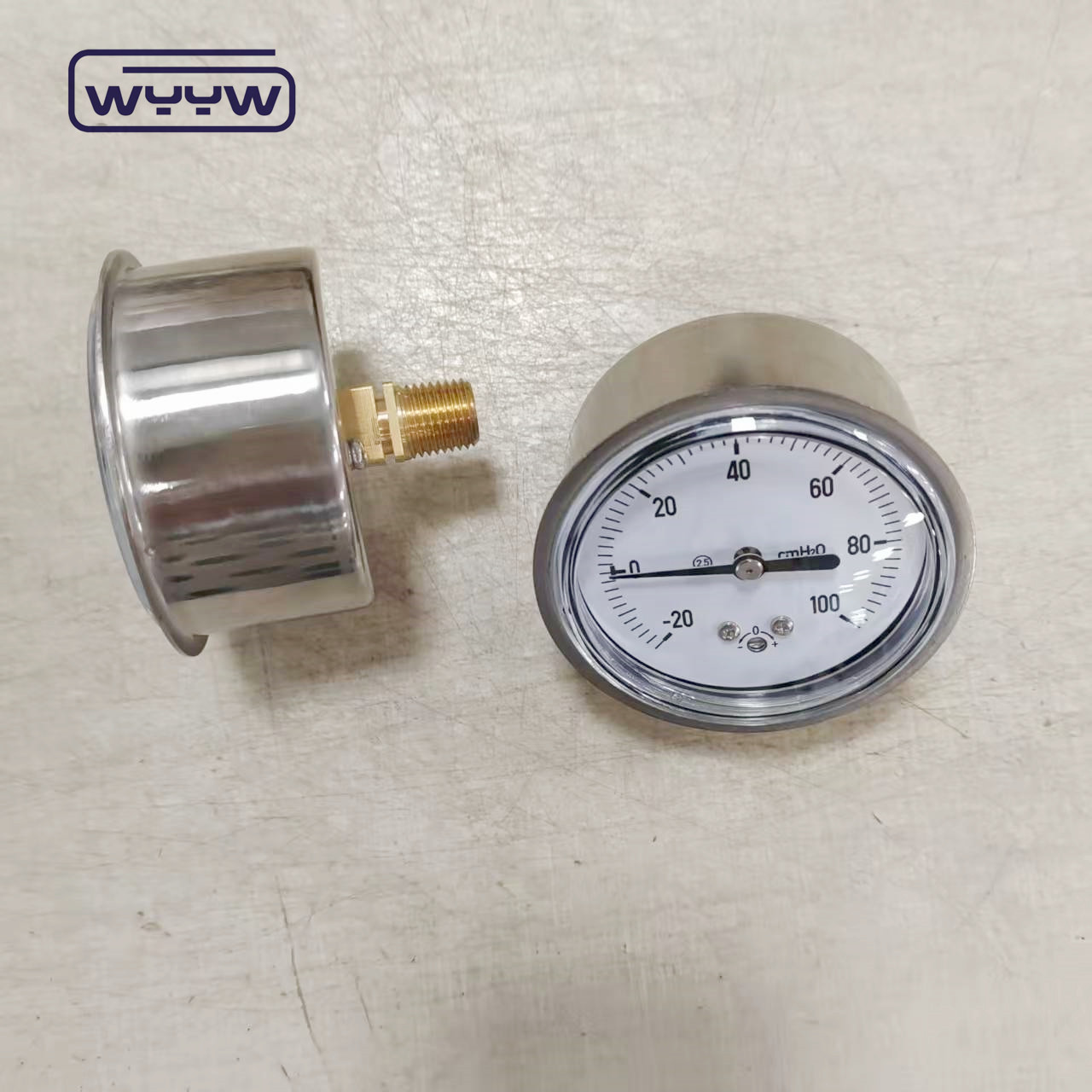

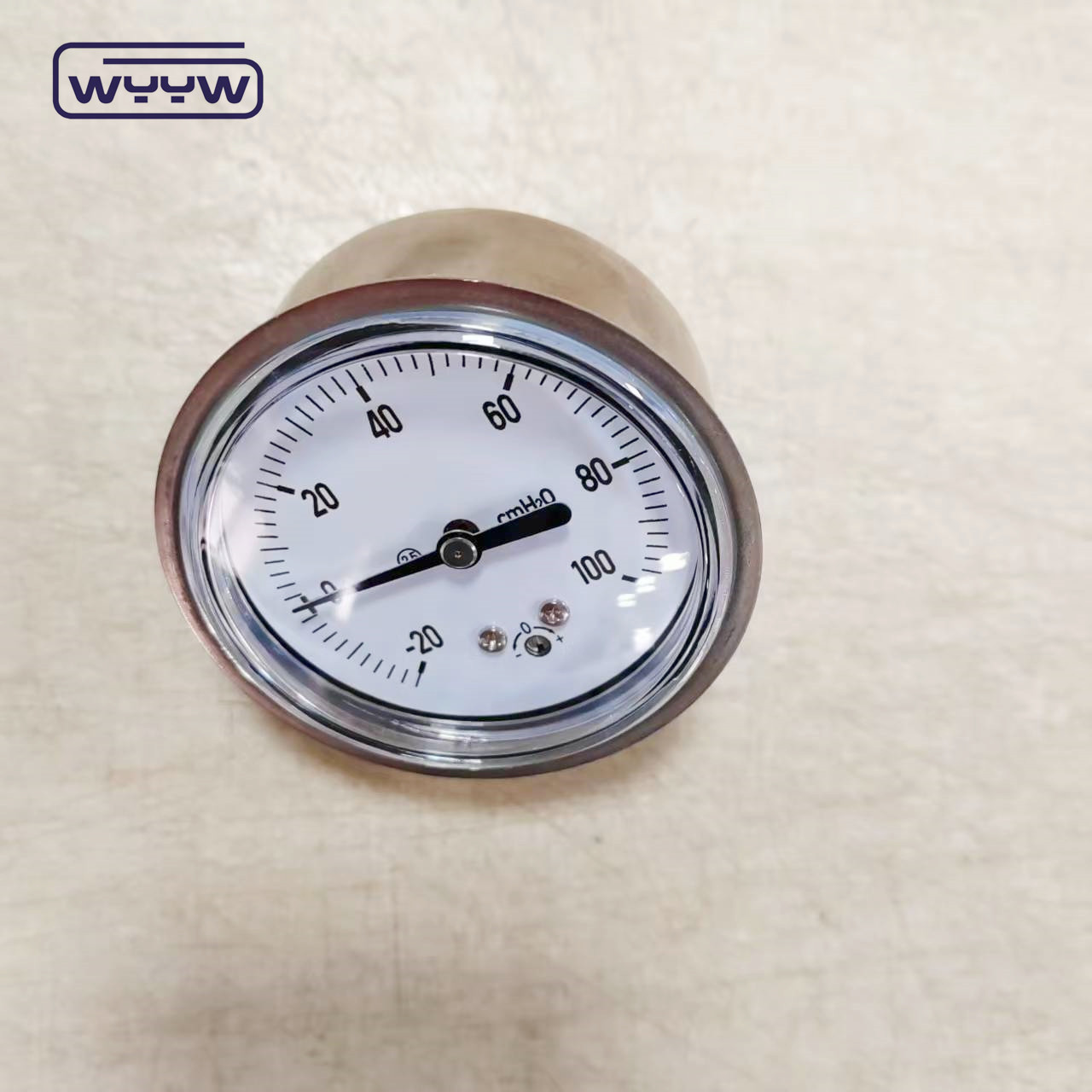

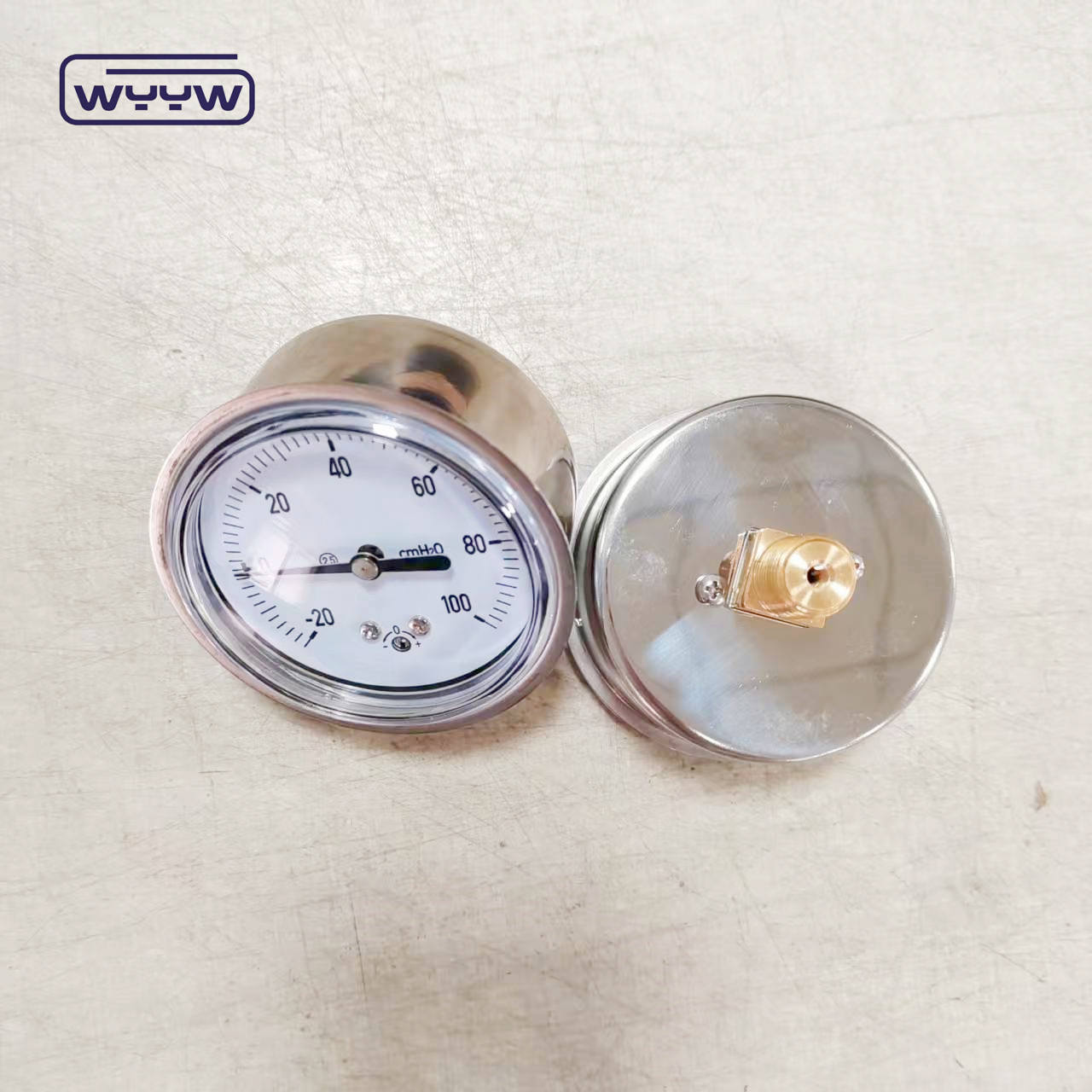

63mm stainless steel axial connection ss304 case -20+100cmh20 low pressure gauge

20 piezas
MOQ
$10.00/pieces
Precio
63mm stainless steel axial connection ss304 case -20+100cmh20 low pressure gauge
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Material: estuche de acero inoxidable y conención de latón
Conexión: Atrás
Rango de presión: Micro baja presión
Exactitud: 2.5%
Tamaño de dial: 63 mm
Puerto: Qingdao
Información básica
Lugar de origen: Shandong, China
Nombre de la marca: WYYW
Certificación: CE ISO
Número de modelo: Ye-63
Pago y Envío Términos
Detalles de empaquetado: Cada unidad en una caja de papel, 30 cajas en un cartón. Como se solicita el cliente.
Tiempo de entrega: 20-30 días
Condiciones de pago: T/t, unión occidental
Capacidad de la fuente: 10000 piezas/piezas por mes
Descripción de producto

63mm stainless steel axial connection ss304 case -20+100cmh20 low pressure gauge 0

Product Description

63mm stainless steel axial connection ss304 case -20+100cmh20 low pressure gauge 1

Name

Capsule/ Bellows/ Low pressure manometer

Dials Size

63/100/150mm (or dail size made as demand)

Case

Black Steel,Stainless steel

Pressure

Mpa,other scale units bar, psi, kg/cm2 etc.optional

Ring

Gasket under the window

Movement

Brass,Stainless Steel

Socket

Brass,Stainless Steel

Bourdon tube

Phosphor Bronze,Stainless Steel

Dial plate and pointer

Aluminum

Window

Glass; Safe Glass

Connection sizes

1/8" for 1.5; 1/4 for 2",2.5" case; 1/2 for 4",6"

Connection threads

Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)

Mounting

Bottom/ Back

Liquid

dry, silicone or glycerine filled

Accuracy

2.5(63mm)-2.5%
4(100mm) and 6 (150mm)-1.6%

Pressure limitation

Steady: 3/4x full scale value
Fluctuation:2/3x full sacle value
Short time:full scale value

63mm stainless steel axial connection ss304 case -20+100cmh20 low pressure gauge 2

63mm stainless steel axial connection ss304 case -20+100cmh20 low pressure gauge 3

63mm stainless steel axial connection ss304 case -20+100cmh20 low pressure gauge 4

Product Application

1.Outdoor and severe ambient and process conditions

2.Use where harmful vibration and pulsation are present

3.Hydraulic equipment, pressure washers,oil field equipment, pumps, compressors and process systems

63mm stainless steel axial connection ss304 case -20+100cmh20 low pressure gauge 5

Company Information

Qingdao DaZeFengYang Meter & Welding Instruments Co., Ltd, situated in the vibrant city of Qingdao, Shandong province, operates as an integrated processing enterprise specializing in pressure gauges and bimetal thermometers, among other products. Upholding the highest standards, we diligently adhere to the ISO-9001 and CE certifications within the international Quality Management System throughout our design, production, and testing processes.

Our facility, guided by the core tenets of "Best Quality and Credit," stands as the chosen supplier for esteemed domestic and international enterprises in need of mechanical, electrical, and instrument equipment. Our business ethos revolves around fostering reciprocal and mutually beneficial relationships.

With a shared vision for a brighter tomorrow, we eagerly anticipate the opportunity to collaborate and collectively shape a prosperous future together!



63mm stainless steel axial connection ss304 case -20+100cmh20 low pressure gauge 6



63mm stainless steel axial connection ss304 case -20+100cmh20 low pressure gauge 7

63mm stainless steel axial connection ss304 case -20+100cmh20 low pressure gauge 8

Packaging & Shipping

63mm stainless steel axial connection ss304 case -20+100cmh20 low pressure gauge 9

Advantages
  • Cutting-Edge Equipment and Expertise: We are dedicated to delivering top-quality gauges worldwide, leveraging state-of-the-art equipment and professional know-how.

  • Unmatched Post-Purchase Support: Our unwavering commitment to exceptional after-sales service is geared towards fostering enduring trade partnerships.

  • Rigorous Quality Assurance: Each of our pressure gauges undergoes thorough 100% inspection, bolstered by our ISO9001 and UL certifications.

  • Swift Dispatch: Timely deliveries are our hallmark, ensuring that customer requirements are always promptly met.

  • Streamlined Procurement and Cost Efficiency: As adept manufacturers, we offer a seamless purchasing experience and premium products at competitive prices, helping you save costs.

  • Tailored OEM Solutions: Over the years, we have successfully fulfilled numerous OEM orders for renowned companies in the USA and European markets, showcasing our customization capabilities and reliability.
